Product Description

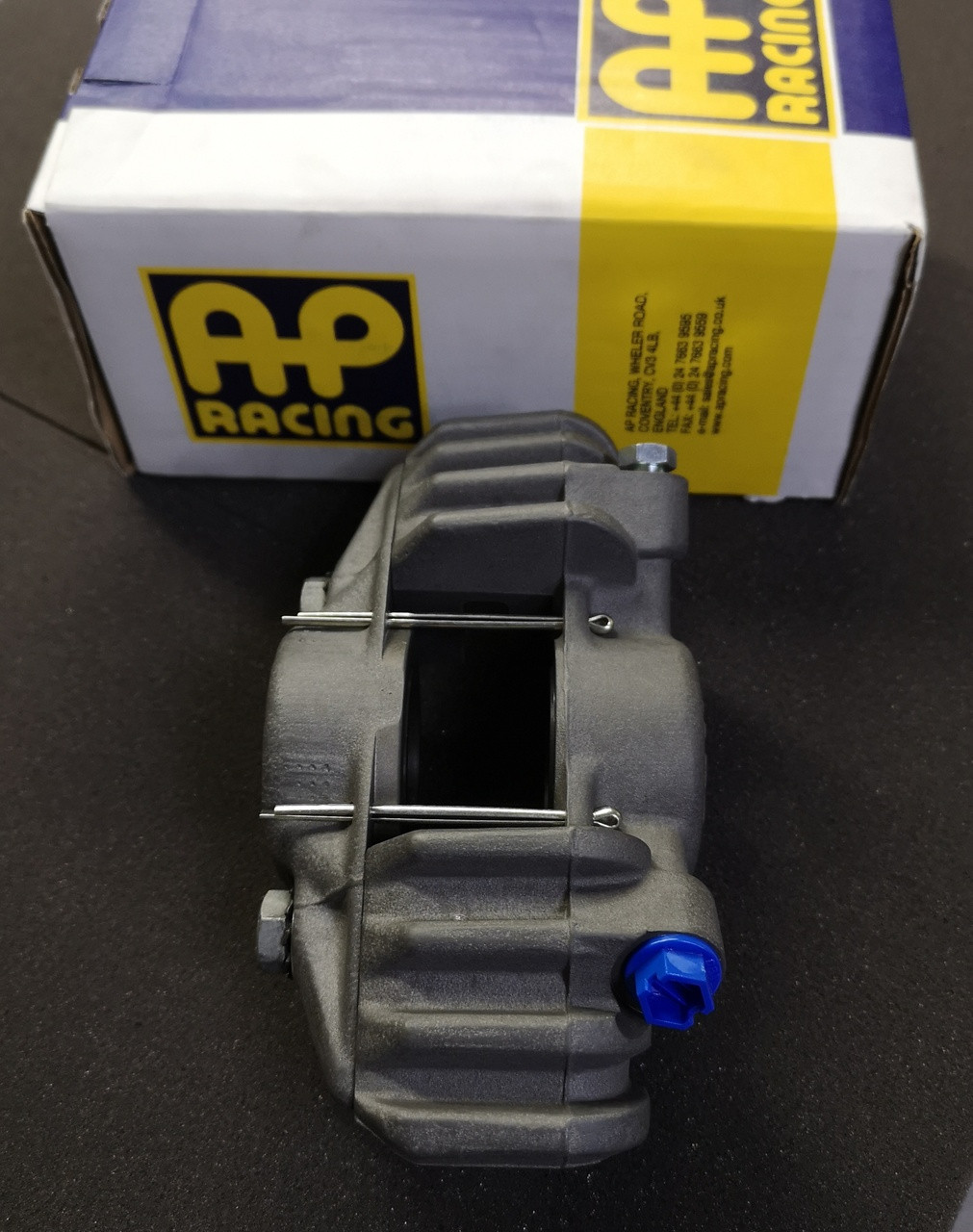

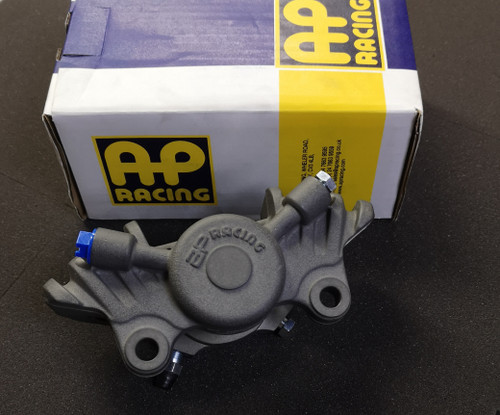

The AP Racing 2 piston classic CP2696 caliper is used in a variety of different applications including solo bikes, classic machines and F2 Sidecar. A classic design that features an aluminium alloy body and pistons.
| Pad Family | CP2195D38 |
| Piston Diameter mm | 41.3 x 2 |
| Total Piston Area cm² | 26.8 |
| Disc Diameter Max mm | 304 |
| Disc Thickness mm | 6.4 |
| Weight Kg | 0.9 |
| Hydraulic Threads | 3/8 x 24UNF |
| Mounting Centres - mm | 89 |
| Offset - mm | 19.1 |
| Mounting Hole Diameter - mm | 10.2 |
| Bleed Screw Tightening Torque | 17Nm (12.5lbs/ft) |
| Spare Parts | Part Numbers |
| Seal Repair Kit | CP4518-K |
| Pistons | CP2055 x 1 / CP2195-9 x 1 |
| Pad Retainer | Split Pin - CP2696-160 x 2 |
| Bleed Screw | CP3720-182 |
